Recirculation valve ST-261.2 250 bar 80 °C 30 litres/min with switch
Recirculation valve ST-261.2 250 bar 80 °C 30 litres/min with switch
€142.39*
(Gross incl. VAT: €169.44)
Content:
1 Piece
Item number:
200261750
Available, delivery time: 1-3 days

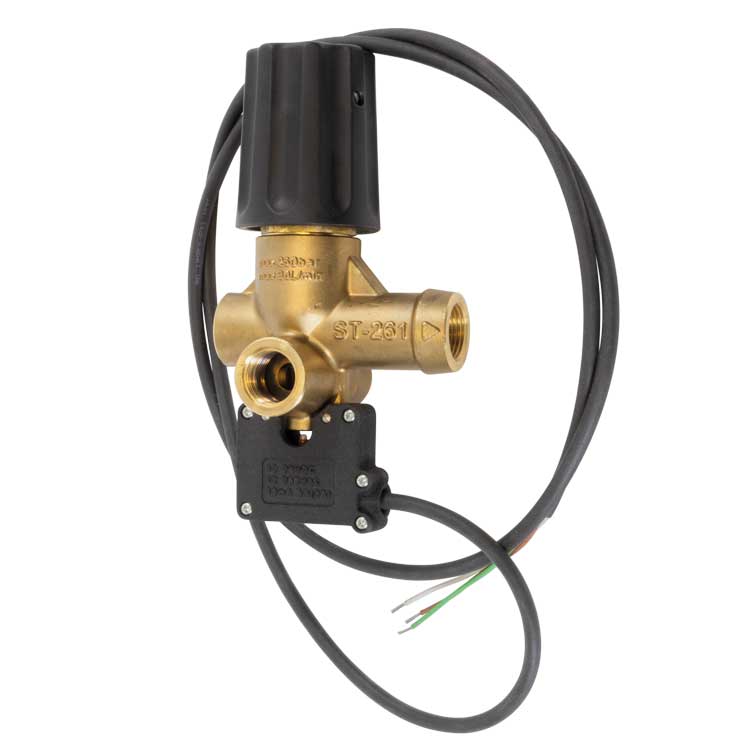

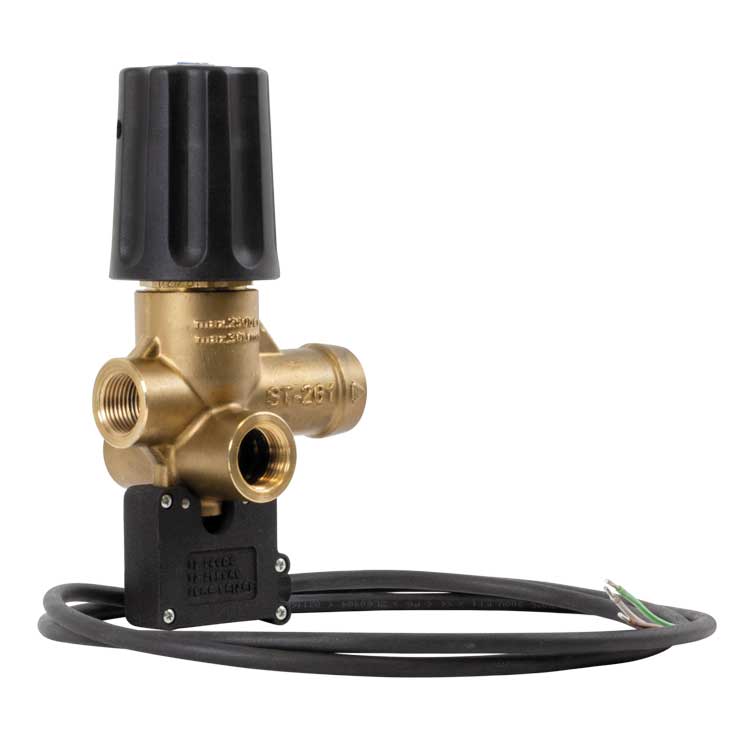

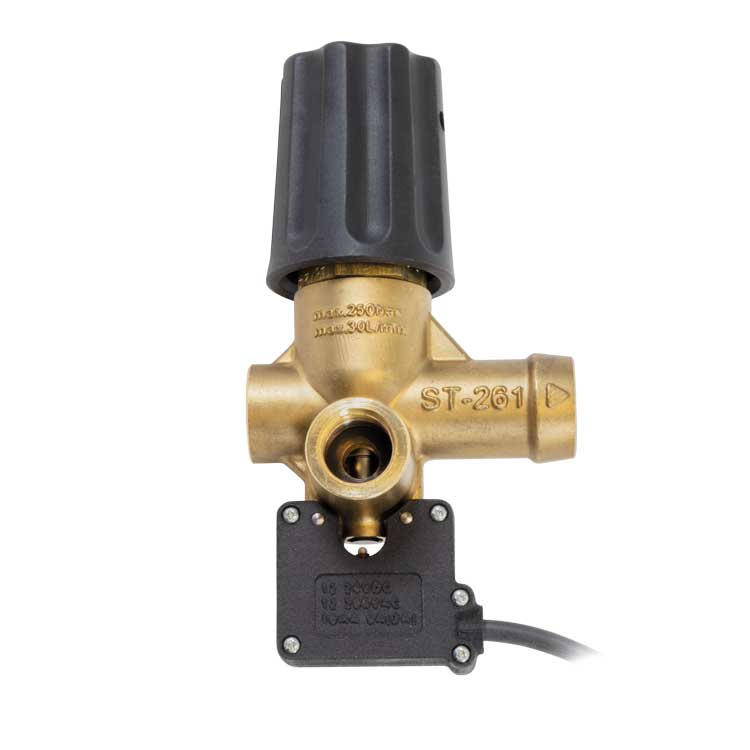

Suttner Recirculation valve ST-261.2
- Smooth switching behaviour
- Durable and small
- Particularly easy to maintain
- Low pressure loss
- Stainless steel valve elements
ST-261 with pressure switch
Inlet 3/8" female thread
Outlet 3/8" female thread
Bypass 1/4" female thread
Pressure gauge 1/4" IG
Max. 250 bar / 80°C / 30 l/min
Cable 1,200 mm / 3 wires
IP6K7
Outlet
3/8 "IG
Bypass
3/8 "IG
Pressure
250 bar
Flow rate
30 l/min
Inlet
3/8 "IG
manufacturer
Suttner
Power rating
Length
Series
ST-261.2
Voltage range
12-24VDC 12-250VAC
Dust class
IP6K7
Operating temperature
80°C
Hersteller/Importeur
Downloads "Recirculation valve ST-261.2 250 bar 80 °C 30 litres/min with switch"
