Foam lances

PP + Viton - stainless steel 316 - 25 bar - 70 l/min - max 50°C - 2 x 1/2" female thread

without HP nozzle

Without nozzle

Without nozzles

Foam double lance ST-175 Foam & CleanA foam injector is requiredTechnical dataMaterial stainless steelMax. pressure: 350 barMax.: 45 l/minMax.: 100°CInlet: M22x1.5IG screw connectionLength: 420 mmInsulation: ST-9, 205 mmChangeover valve ST-58Foam head ST-75.1 without nozzleNozzle guard ST-10: 1/4 "IG-NPT

Spray gun easywash365+ StandardSpray wand with extension ST-9.1 245 mmFoam nozzle ST-75 1.9 mmInjector ST-160 with dosing valve ST-161,(coupling ST-45-250 brass, plug nipple ST-45-250 galvanised steel and M22x1.5AG)Suction hose 1,000 mm and suction filter ST-32.Max. 310 bar / 150 °CInlet: 3/8 "IG rotatableThe suction hose installed via a T-piece between the outlet of the high-pressure unitThe stainless steel injector with high-pressure foam lance installed via a T-piece between the outlet of the high-pressure unit and the original spraying device is particularly suitable for the professional cleaning of lorries in haulage companies or in the food industry as well as for industrial foam cleaning applications.applications in industrial foam cleaning.The injector unit is connected to the high-pressure foam lance via an optional high-pressure hose of up to 40 metres in length. The existing spraying device is used for cleaning and rinsing work. Thanks to the direct availability of cleaning agent at the foam lance without having to switch over at the device or change accessories, enormous savings in cleaning agent and time can be achieved.The design can be further simplified in handling and increased in efficiency by integrating two hose reels. The unit can be used with almost all commercially available high-pressure cleaning devices.

Material: Stainless steel / plastic.At least 70 bar when operated with an easyfoam365+ injector.At least 30 bar for operation with water / foam concentrate premix.Max. 250 bar / 20 - 60 l/min / 100 °CInlet: 1/2 "IGThe foamblaster ST-76 is suitable for foam applications without the supply of compressed air in industry, agriculture, municipal or fire extinguishing technology.Suitable injector nozzles with a diameter of up to 2.8 mm for large volume flows are available for all easyfoam365+ injectors ST-160, ST-164, ST-166 and ST-167 made of stainless steel.

Foam lance with dosing Max. 200 bar / 65°C / 25 l/min Nozzle: 1.5 mm

LS3 foam lance with dosage and bottleMax. 180 bar / 60°C / 12 l/minNozzle: 1.25 mm

Foam lance with easywash365+Spray gun easywash365+ design selectableSpray wand with extension ST-9.1 245 mmFoam nozzle ST-75 1.9 mmMax. 310 bar / 25 l/min / 150 °CInlet: 3/8 "IG rotatable

ST-007 radiant tube with overmoulded insulation. Closed surface. Technische Daten Outlet ST-10 with nozzle Bypass 400 bar Inlet Plug ST-3100 colour Blue colour Manufacturer colour Suttner material stainless steel Series ST-007 Temperature range 150°C

with foam nozzle 50200 brassInlet: Plug nipple ST-3100Material: Stainless steelLength 300 mmNozzle 50° 200Max. 90°CWeight. 0.35 kg

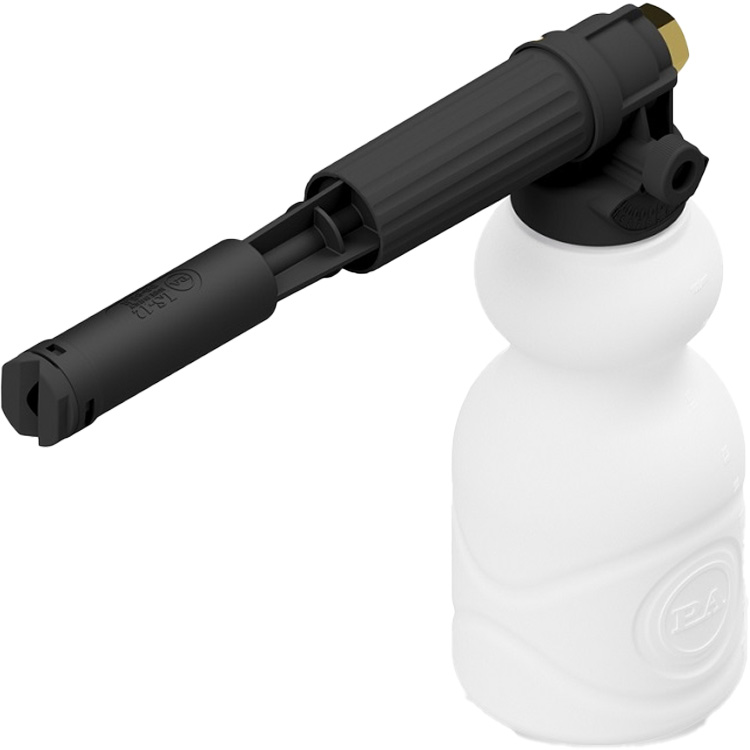

Foam injector lance with dosage and bottle.Connection: KW-Profi plug-in nippleNozzle size 1.25Tank capacity 1 litreMax. 300 bar / 80°COur easyfoamer ST-73.1 foam injector lance ensures optimum air/detergentcleaning agent mixture and thus for an optimum foaming result.You can rely on:" an injector made entirely of stainless steel and corrosion-resistant" special chemical resistance" 5 defined dosing positions" 1 litre and 2 litre container" a vertical or horizontal spray pattern" a registered patent
