Everything for the pre-wash station

The straight swivel arm with a spring is characterised by a stainless steel construction in box form with two ball bearings and double watertight seal without maintenance requirements for easy 360° rotation. FURTHER INFORMATION: Viton seals 360° rotation angle Length 1750 or 2000 mm Max. 210bar / 90°C Connections inlet 1/4 "IG - outlet 3/8" AG

The straight swivel arm with two springs is characterised by a tubular stainless steel construction with two ball bearings and double watertight seal without the need for maintenance. FURTHER INFORMATION: Viton seals 360° angle of rotation Length 1750 or 2000 mm Max. 210bar / 90°C Connections inlet 1/4 "IG - outlet 3/8" AG

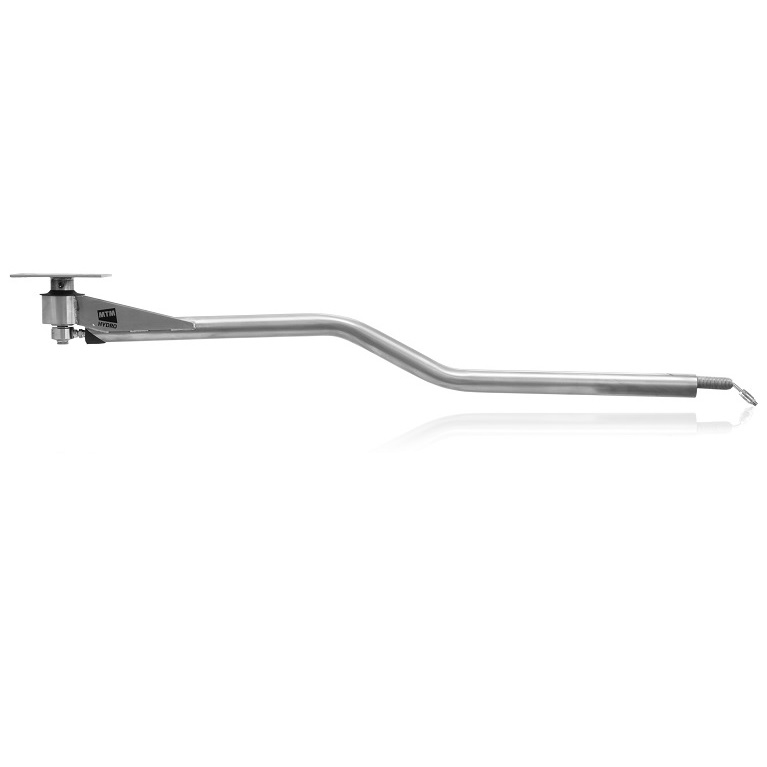

The Z-shaped curved swivel arm with a spring is characterised by a tubular stainless steel construction with two ball bearings and double watertight seal with no maintenance required for easy 360° rotation. The internal hose is made of rubber. FURTHER INFORMATION: Viton seals 360° rotation angle Length 1550 mm Max. 210bar / 90°C Connections inlet 1/4 "IG - outlet 3/8" AG

The Z-shaped swivel arm with two springs with two springs is characterised by a tubular stainless steel construction with two ball bearings and double watertight seal for easy 360° rotation without the need for maintenance. The internal hose is made of rubber. FURTHER INFORMATION: Viton seals 360° rotation angle Length 1550 mm Max. 210bar / 90°C Connections inlet 1/4 "IG - outlet 3/8" AG

Technical data: Max. delivery rate: 4.7 l/min Max. delivery pressure: 4.2 bar Suction height max: 4 m Weight 1.9 kg Medium connection: 3/8" Voltage [V]: 230V AC Piston diameter: 12 mm Duty cycle at 20°C: 100% DUTY CYCLE A rectifier diode is essential for operating the pump . The connection cable with diode is supplied

Suitable e.g. for Washtec Programme: Token - 50ct - 1 EUR - 2 EUR Tamper-proof coin acceptor Latest generation - precise technology Type WH800 v6

Coin-operated machine for controlling self-service vacuum cleaners, high-pressure pre-cleaners and insect pre-sprayers " Mechanical coin coin validator with coin return (MMP) " Coin types 1 " 1-digit coin display " Coin preselection / minimum insertion 1 - 4 coins adjustable " Time selection 1 - 320 minutes per coin adjustable " Can be retrofitted with mechanical coin counter " Splash-proof electronics " Switching current 16 A - AC1 " H x W x D 260 x 160 x 110 mm " Weight 3.5 kg Powder-coated steel housing

Electronic MP + splash guard flap

Electronic MP + splash guard flap

Comet High pressure - Motor pumps are ideal for pre-cleaning stations or self-service washing systems . Durable and cost-effective spare parts.All versions with recirculation valve, delayed total stop control, pressure gauge, 6 m electric cable and on/off switch. PRODUCT FEATURES Output: M22 AG Speed: 1450 Pressure: 150 bar Flow rate: 15 l/min Inlet: 1/2" female thread Power: 5.0 KW Voltage: 400 V Power consumption: 5.0 kW DESCRIPTION Electric motor MEC 100. Brass head. Built-in bypass valve. Aluminium crankcase. Stainless steel non-return valves. Ceramic piston. Bronze connecting rod. Double textile seals. BASIC VERSION: Motor complete with protective housing. TSR VERSION: Complete motor with electrical box, switch, 6 m cable and Total Stop system.

High-pressure ceiling gyroscope incl. High-pressure hose For mounting on the wall or ceiling Ideal for self-service systems or pre-wash stations " Wall or ceiling mounting " Incl. high-pressure hose DN 8, black " Ceiling swivel 360° swivelling, 180° swivelling for wall mounting " Ball bearing mounted pivot point " Total length up to 2500 mm " Max. 275 bar / 120 °C " Connection: 3/8" AG " Material: stainless steel

Stainless steel spray wand with easywash365+ handleNozzle guard ST-10 without nozzleMax. 350 bar / 45 l/min / 120°CLength 500 mmInlet: 1/4" AGOutlet: 1/4" IG-NPT

easywash365+ Wall-mounted swivel arm with Ceiling-mounted gyro Total length 3600mm " Designed for the washing large vehicles " Ceiling gyro can be swivelled 360°, swivel arm can be swivelled 180 " Ball bearing mounted, maintenance-free pivot points " Optional counter plate available " Max. 275 bar / 120 °C " Connection: 3/8" AG " Material: stainless steel

Black plasticFoam head ST-75Material: plastic / brassColour: blackMax. 350 bar / 100°CInlet: 1/4" female thread

easywash365+ blueFoam head ST-75Material: Plastic / brassColour: easywash365+ blueMax. 350 bar / 100°CInlet: 1/4" IG

Ideal for use at self-service bays or in the pre-cleaning area. Consisting of: ST-1100 high-pressure gun Rigid lance 800mm overmoulded HD nozzle as required as required Hose connection n. as required max. 210 bar max. 25 l/min max. 150°C

Blue High-pressure hose for self-service systems with kink protection on one side for connection to ceiling gyroscopes. Inner diameter: 6mm Union nut: 1/4" Wire insert: single layer max. 210 bar Kink protection: 1x Which hose?

Blue High-pressure hose for self-service systems with kink protection on one side for connection to ceiling gyroscopes. Inner diameter: 6mm Union nut: 3/8" Wire insert: single layer max. 210 bar Kink protection: 1x Which hose?

Ideal for use at self-service bays or in the pre-cleaning area. Consisting of: ST-1100 high-pressure gun Rigid lance 800mm overmoulded 15° angled HD nozzle as required as required Hose connection n. as required max. 210 bar max. 25 l/min max. 150°C

Professional high-pressure underbody lance ST-97.1 for underbody washing. Material stainless steel. Rollers: POM. Tube: Stainless steel, plastic-coated. Max. 40 l/min. 100 °C. Without nozzles. 3 nozzles 1/8" AG are required Length: 1700mm Gun ST-601 Connection: Inlet = 3/8" female thread

Stainless steel lance holder for high-pressure lances in self-service systems formounting on the floor. Drain connection 20 mm. Tube length 730 mm. Pipe diameter 60 mm. Matching wall bracket (105625)

Suitable for self-service vacuum cleaners, high-pressure pre-cleaners, insect sprayers, etc. Coins 50 cent, 1 and 2 euro Tokens Jeton profiled or smooth with hole Front plate 129 x 52 mm Hole size 119 x 42 mm Additional equipment: electronic slot lock 537 de-energised locked Electronic slot lock 539 energised locking
