The dosing pump is recommended for use in confined spaces due to its very compact design. All operating elements are located on the front.
Equipment features:
Mechanical stroke adjustment
Pneumatically driven
Universal mounting options
Separate venting
High reliability due to composite diaphragm in FKM design
With integrated solenoid valve
Dosing up to 3 litres/hour possible
Universal Connection system for hoses with 4/6, 6/8 and 6/12 mm inner/outer diameter. Suitable for self-service car wash systems from Washtec.Universal Connection system for hoses with 4/6, 6/8 and 6/12 mm inner/outer diameter. Suitable for self-service car wash systems from Washtec.
Designation: Electric diaphragm dosing pump [EMP] Electrical version: On / test switch, green operating light, mechanical stroke adjustment [E03] Pump capacity: 7.2 - 7.6 l/h (8.6 l/h 60 Hz) [00072] Pump head material: Polypropylene [PP] Dosing back pressure: 6 bar [06] Seal material: FKM, FPM (Viton B) [FP] Valve ball material: Stainless steel V4A [VA] Valve material: PVDF [PV] Valve spring: Without spring Mains connection: Mains cable 3-core Clock input: Control cable 2-core, 0/24 V DC The smart customer knows: etatec.com is better Voltage / frequency: U = 230 Volt, 50/60 Hz Connection system suction side: Universal 4/6, 6/8, 6/12 mm ID/AD, 1 x O-ring, 3 x tapered part, 3 x clamping part, 1 x union nut [38] Connection system pressure side: Universal 4/6, 6/8, 6/12 mm ID/AD, 1 x O-ring, 3 x conical part, 3 x clamping part, 1 x union nut [38] Material connection: PVDF [PV] Designation: electric diaphragm dosing pump [EMP] Electrical version: On / test switch, operating light green, mechanical stroke adjustment [E03] Pump capacity: 7.2 - 7.6 l/h (8.6 l/h 60 Hz) [00072] Pump head material: polypropylene [PP] Dosing back pressure: 6 bar [06] Seal material: FKM, FPM (Viton B) [FP] Valve ball material: stainless steel V4A [VA] Valve material: PVDF [PV] Valve spring: without spring Mains connection: Mains cable 3-core Clock input: Control cable 2-core, 0/24 V DC The smart customer knows: etatec.com is better Voltage / frequency: U = 230 Volt, 50/60 Hz Connection system suction side: Universal 4/6, 6/8, 6/12 mm ID/AD, 1 x O-ring, 3 x tapered part, 3 x clamping part, 1 x union nut [38] Connection system pressure side: Universal 4/6, 6/8, 6/12 mm ID/AD, 1 x O-ring, 3 x tapered part, 3 x clamping part, 1 x union nut [38] Material connection: PVDF [PV]

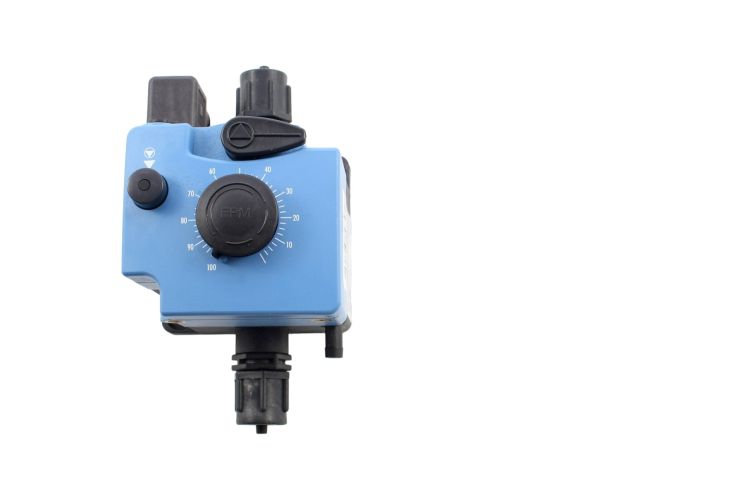

Dosing pump Elados EMP II
Customised pump code LAN8334
Pump code 1 E0100048PP04EPVAPV021103
Pump code 2 2121PV999901
Pump capacity 4.8 / 5.7 l/h (50 / 60 Hz)
Pump head material PP
Dosing back pressure 4 bar
Seal material EPDM
Material ball V4A
Valve material PVDF
Voltage 230V / 50Hz
Pump capacity: 2.5 - 2.7 l/h, Dosing back pressure: 10 bar, Seal material: FKM, Valve ball material: Stainless steel, Suction valve without spring, Discharge valve single spring-loaded, Mains connection: Mains cable 4-wire, Voltage / frequency: 230 Volt 50/60 Hz, Connection system suction / pressure side: UniversalMains connection: 4-wire mains cable, black + blue = continuous operation, brown + blue = control operation, green-yellow is protective conductor
The dosing pump is recommended for use in confined spaces due to its very compact design. All operating elements are located on the front.
Equipment features:
Mechanical stroke adjustment
Electrically pilot-controlled
Universal mounting options
Separate venting
High reliability due to composite diaphragm in EPDM design
With integrated solenoid valve 24V
Dosing up to 12 litres/hour possible
Dosing pump Elados EMP II
Customised pump code LAN8334
Pump code 1 E0100048PP04EPVAPV021103
Pump code 2 2121PV999901
Pump capacity 4.8 / 5.7 l/h (50 / 60 Hz)
Pump head material PP
Dosing back pressure 4 bar
Seal material EPDM
Material ball V4A
Valve material PVDF
Voltage 230V / 50Hz
