High-pressure swivel joints in various designs

Swivel joint ST-322 Completely made of stainless steel Swivel joint with sliding ring Sealing element 1/2" female thread : M28x1.25AG DN 12 Max. 300 bar / 30 rpm / 90°C Area of application: Hose reel series 434 + 564 Height 79.5mm

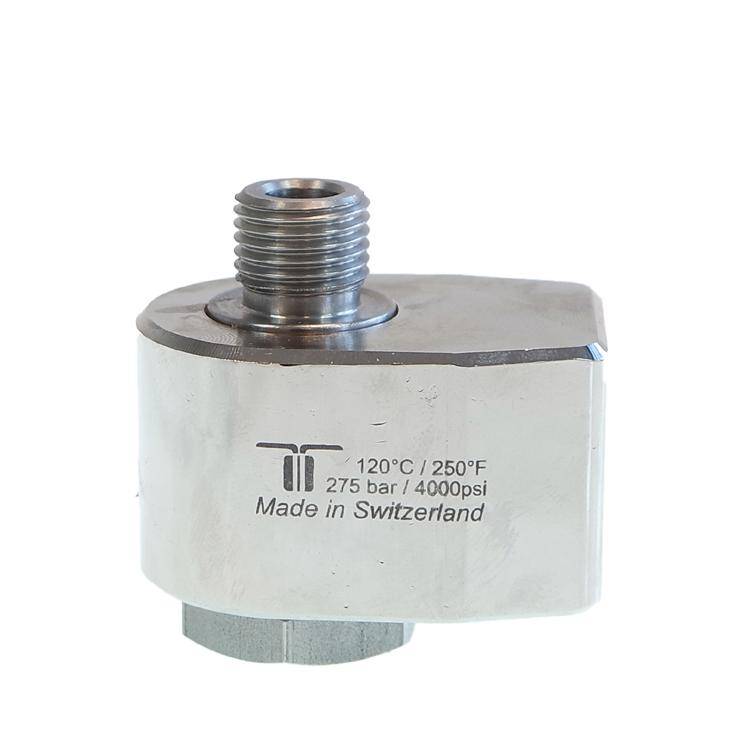

Easywash swivel joints are specially designed for use with high-pressure guns and hose connections and Hose connections, Ceiling swivel in Self-service washing systems Stainless steel / nickel-plated brass housing. Stainless steel axle. Maintenance-free. Inlet: 1/4" male thread Outlet: 1/4" female thread Max. 275 bar 30 rpm 120 °C

Area of application: Swivel joints especially for use on high-pressure guns and hose connections and Hose connections, Ceiling swivel in Self-service washing systems Housing stainless steel / nickel-plated brass. Stainless steel axle. Maintenance-free. Inlet: 1/4" female thread Outlet: 1/4" female thread Max. 275 bar 30 rpm 120 °C

Easywash swivel joints are specially designed for use with high-pressure guns and hose connections, ceiling gyroscopes in self-service car washes Stainless steel / nickel-plated brass housing. Stainless steel axle. Maintenance-free. Inlet: 3/8" male thread Outlet: 1/4" female thread Max. 275 bar 30 rpm 120 °C

Area of application: Swivel joints especially for use on high-pressure guns and hose connections and hose connections, ceiling-mounted swivels in self-service washing systems. Stainless steel / nickel-plated brass housing. Stainless steel axle. Maintenance-free. Inlet: 3/8" male thread Outlet: 3/8" female thread Max. 275 bar 30 rpm 120 °C

Easywash swivel joints are specially designed for use with high-pressure guns and hose connections, Ceiling swivel in self-servicewashing systems Housing stainless steel / nickel-plated brass. Stainless steel axle. Maintenance-free. Inlet: 3/8" female thread Outlet: 3/8" female thread Max. 275 bar 30 rpm 120 °C

Area of application: Ceiling gyro in self-service washing systemsNickel-plated brass housing. Axle stainless steel. Inlet: male thread Outlet: female thread Max. 275 bar 30 rpm 120 °C

Stainless steel housing, nickel-plated brass.Stainless steel axle.Maintenance-free.DN 6.1/4" female thread : M14x1.5AG.Max. 275 bar / 120 °C30 rpm.PU: 1 pieceArea of application: Swivel joints especially for use on high-pressure guns and hose connections, ceiling swivels in self-service washing systems.

Easywash swivel joints are specially designed for use with high-pressure guns and hose connections, ceiling gyroscopes in self-servicewashing systems Housing stainless steel / nickel-plated brass. Stainless steel axle. Maintenance-free. Input: M18 external thread Outlet: 1/4" female thread Max. 275 bar 30 rpm 120 °C

Easywash swivel joints are specially designed for use with high-pressure guns and hose connections, ceiling gyroscopes in self-service car washes Stainless steel / nickel-plated brass housing. Stainless steel axle. Maintenance-free. Inlet: 1/4" male thread Outlet: 3/8" female thread Max. 275 bar 30 rpm 120 °C

Suttner Swivel joints ST-322Completely made of stainless steelSwivel joint with sliding ring Sealing elementDN 10 for 3/8" AGDN 12 with 1/2" AGMax. 50 bar / 30 rpm / 90 °CArea of application: Hose reelHeight 65mmEspecially for low pressure applications up to 50 bar.

Stainless steel housing and axle1/4" IG : 3/8" AGDN 6Max. 600 bar / 90°CLength 59mmArea of application: Hose reel

Stainless steel housing and axle3/4" IG : 3/4" AGDN 19Max. 200 bar / 90°CLength 80mmArea of application: Hose reel

Suttner Swivel joints ST-322Completely made of stainless steelSwivel joint with sliding ring Sealing elementDN 10 for 3/8" AGDN 12 with 1/2" AGMax. 400 bar / 30 rpm / 90 °CArea of application: Hose reelHeight 65mm

Swivel joint ST-322Completely made of stainless steelSwivel joint with sliding ring sealing elementArea of application: Hose reel Technical data Revolutions 30 rpm Temperature range 90 °C Series ST-322 Nominal size DN12 Dimensions 48 x 70 mm material stainless steel manufacturer Suttner pressure 400 bar Connection 2 G1/2" FEMALE THREAD Connection 1 G1/2" MALE THREAD

Area of application: Ceiling gyroscope in self-service car washes Made entirely of stainless steel. Swivel joint with sliding ring sealing element Swivel joint ST-320Completely made of stainless steelSwivel joint with sliding ring Sealing elementDN 6Max. 400 bar / 30 rpm / 90°CHeight 48mm

Housing: Stainless steelInner part: Stainless steelRust and maintenance-free1/2" = DN 13, 1" = DN25Max. 350 bar / 30 rpm / 120°C3-fold ball bearingLength 97mmRange of application:Specially designed for high flow rates and low speeds, e.g. in automatic washing systems.

Stainless steel axle and housing 2 bearings Rust and maintenance-freeMax. 20barDN: 65mmTemperature 5-80°C Specially designed for large flow rates, e.g. in automatic washing systems or hose reels.

Housing: Nickel-plated brassInner part: Stainless steelRust and maintenance-free1/2" = DN 13, 1" = DN25Max. 275 bar / 30 rpm / 120°C1-fold ball bearingLength 91mmApplication range:Specially designed for high flow rates and low speeds, e.g. in automatic washing systems.

Nickel-plated brass housingStainless steel axleDN 71/4" female thread : 1/4" male thread or 3/8" female thread : 1/4" male threadMax. 150 bar / 120°CHeight 46mmArea of application: Ceiling-mounted gyroscope in self-service car washes.

Stainless steel axleNickel-plated brass housing3 bearingsRust and maintenance-freeDN 6Max. 275 bar / 2000 rpm / 120°CLength 80mmApplication range:Specially designed for high speeds and self-rotating applications.

Stainless steel axle and housing3 bearingsRust and maintenance-freeDN 6Max. 350 or 500 bar / 2,000 rpm / 120°CLength 95mmApplication range:Specially designed for high speeds and self-rotating applications.
