Manual and automatic high-pressure hose reels,

Automatic high-pressure hose reel 4430.Application: Air and waterInlet: 1/2" female threadOutlet: 1/2" AG rotatableMax. 20 bar / 70 °CHose:DN12 blue, smooth coverLength: 15 metresIncl. inlet hose 0.6 metresGalvanised steel hose fittingsHose reel:Steel frame, powder-coated.Reel made of particularly impact-resistant ABS plastic, colour yellow.Automatic spring return and strain relief.Brass swivel joint.

Type: 1100Max. 90 °CMaterial: Stainless steel V2A / AISI 304.

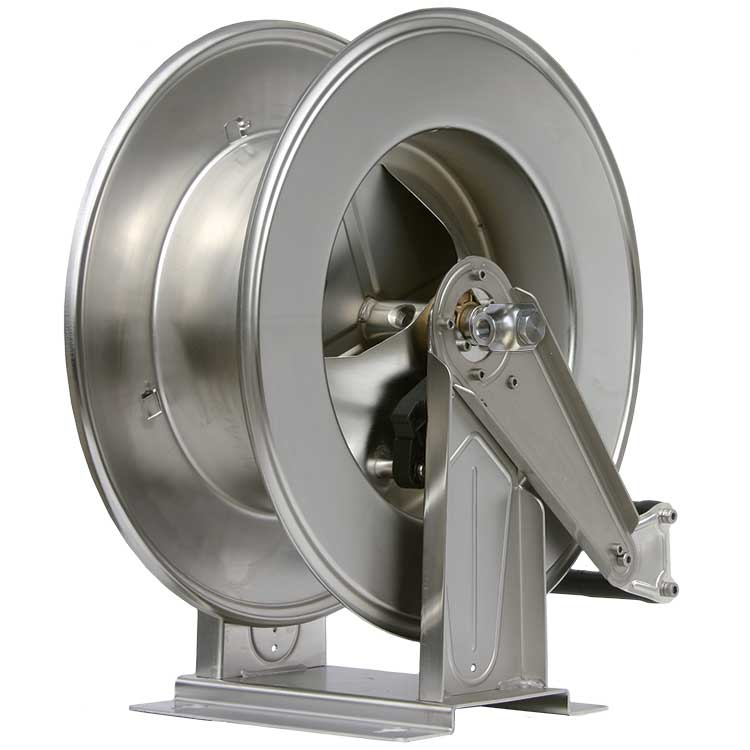

Adjustable hose inlet window - VA - 35m - 400 bar - Hose: 3/8" - 1/2" Connection inlet 1/2" AG with angled swivel jointOutlet 1/2" IG

Hose reel with hose guide HR1100HD The HR1100HD hose reel is made of stainless steel and is suitable for 1/2" hose lines with a maximum length of up to 20 metres. It is designed for a working pressure of up to 200 bar and can be subjected to a constant working temperature of up to 90 °C, but can also withstand temperatures of up to 140 °C for short periods. The hose reel is suitable for air and water. The integrated automatic retractor saves you valuable time in your daily work and increases the service life of the installed hose. The hose guide ensures that the hose is always wound up accurately. It can be mounted either on the floor, ceiling or wall. Item details: HR1100HD automatic hose reel with hose guide for perfectly coiled hoses Suitable for: Air, water, water-cleaning mixture Material: AISI 316 stainless steel Max. Ø hose line: 1/2" Max. hose length: 20 metres Hose length: 20 metres Max. Working pressure: 200 bar Max. Water temperature: 90 °C, briefly up to 140 °C Inlet: 1/2" Outlet: 1/2" Seal: EPDM + FKM O-rings High-quality drive springs for a long service life Wall, ceiling and floor mounting possible Hose inlet window with sturdy polyamide rollers can be locked in 10 grid positions per revolution Automatic locking mechanism including hose stop for individual adjustment of the hose length outside the reel Hose line not included as standard

Type: HR3500 Successor model of AV3500Max. 90 °CMaterial: Stainless steel V2A / AISI 304.

The ST and SoST series are very robust and sophisticated hose reels with automatic spring retraction. They have the following features:" Maintenance-free, chemical-resistant plastic plain bearings, totally insensitive to moisture and dirt. " The hose can be locked in 8 locking positions per revolution. A short pull on the hose cancels the lock again. " High-quality textured spring band steel with maximum service life. " Applicable media: water or water with cleaning chemicals, air, oils and greases. " The automatic high-pressure hose reels are equipped with the Suttner swivel joint ST-322 as standard. The Suttner ST-322 swivel joints are made entirely of stainless steel and have a sliding ring sealing element. " Other versions are available on request: electropolished for the food industry and ATEX versions for explosion-protected areas. explosion-proof area. Powder-coated steel. Use in dry environments Stainless steel V2A / AISI 304. Use in wet environments.

The ST and SoST series are very robust and sophisticated hose reels with automatic spring retraction. They have the following features:" Maintenance-free, chemical-resistant plastic plain bearings, totally insensitive to moisture and dirt. " The hose can be locked in 8 locking positions per revolution. A short pull on the hose cancels the lock again. " High-quality textured spring band steel with maximum service life. " Applicable media: water or water with cleaning chemicals, air, oils and greases. " The automatic high-pressure hose reels are equipped with the Suttner swivel joint ST-322 as standard. The Suttner ST-322 swivel joints are made entirely of stainless steel and have a sliding ring sealing element. " Other versions are available on request: electropolished for the food industry and ATEX versions for explosion-protected areas. explosion-proof area. Powder-coated steel. Use in dry environments Stainless steel V2A / AISI 304. Use in wet environments.

The ST and SoST series are very robust and sophisticated hose reels with automatic spring retraction. They have the following features: " Maintenance-free, chemical-resistant plastic plain bearings, totally insensitive to moisture and dirt. " The hose can be locked in 8 locking positions per revolution. A short pull on the hose cancels the lock again. " High-quality textured spring band steel with maximum service life. " Applicable media: water or water with cleaning chemicals, air, oils and greases. " The automatic high-pressure hose reels are equipped with the Suttner swivel joint ST-322 as standard. The Suttner ST-322 swivel joints are made entirely of stainless steel and have a sliding ring sealing element. " Other versions are available on request: electropolished for the food industry and ATEX versions for explosion-protected areas. explosion-proof area. Powder-coated steel. Use in dry environments Stainless steel V2A / AISI 304. Use in wet environments.

The ST and SoST series are very robust and sophisticated hose reels with automatic spring retraction. They have the following features: " Maintenance-free, chemical-resistant plastic plain bearings, totally insensitive to moisture and dirt. " The hose can be locked in 8 locking positions per revolution. A short pull on the hose cancels the lock again. " High-quality textured spring band steel with maximum service life. " Applicable media: water or water with cleaning chemicals, air, oils and greases. " The automatic high-pressure hose reels are equipped with the Suttner swivel joint ST-322 as standard. The Suttner ST-322 swivel joints are made entirely of stainless steel and have a sliding ring sealing element. " Other versions are available on request: electropolished for the food industry and ATEX versions for explosion-protected areas. explosion-proof area. Powder-coated steel. Use in dry environments Stainless steel V2A / AISI 304. Use in wet environments.

The new automatic hose guide guarantees the correct positioning of the hose on the reel and thus prevents uncontrolled winding.Designed to move independently when winding the hose.Equipped with rollers, horizontal and vertical, which can be adapted to the hose in question.Easy to fit both on new hose reels and on equipment already in use.

suitable for ST14/10, ST14/12, ST20/10, ST20/12, ST20/19

suitable for ST40/10/2, ST40/12/2, ST40/19/1

suitable for ST40/19/2, ST60/10/3

Motorised hose reel STKi2Mo STKi2Mo series for trade and industry: The base frame is made of folded sheet steel profiles and guarantees maximum stability. The reel has an almost closed sheet steel hub and runs in maintenance-free plastic bearing bushes. It is driven by a robust geared motor with a manual sliding clutch. Two manual buttons allow the reel to rotate either clockwise or anti-clockwise. The hose is unwound either by motor or manually after disengaging the motor using the sliding clutch. A radio remote control is available as an option, which allows the motor to be controlled from a distance of up to 120 metres. Applicable media: water or water with cleaning chemicals, air, oils and greases. The angled swivel joints are fitted with stainless steel axles as standard. Depending on the nominal size, the housings are made of a hard anodised die-cast aluminium alloy for 3/8 and 1/2 or chemically nickel-plated brass for 3/4. All types can be supplied completely in stainless steel on request.

greyType: 4434Max. 90 °CDimension 1: 460 mmDimension 2: 420 mmDimension 3: 140 mmDimension 4: 186 mmFrame made of stainless steel V2A / AISI 304.Drum made of particularly impact-resistant ABS plastic, which is used for motorbike helmets and in the automotive industry, among other things.

Automatic high-pressure hose reel 434. inlet: 1/2 "IG outlet: 3/8 "AG Max. 300 bar / 90 °C High-pressure hose: 2SN DN 08 blue, smooth upper rubber Fittings made of stainless steel. hose reel: stainless steel V2A / AISI 304. with automatic spring return and strain relief.Suttner Swivel ST-322 made of stainless steel.

Automatic high-pressure hose reel with pre-assembled high-pressure hose.Inlet: M22x1.5AGOutlet: M22x1.5IG (manual screw connection)Max. 400 bar / 90 °CHigh-pressure hose:2SC DN08 black, coiled top rubberFittings galvanised steel / brass.Hose reel:Powder-coated steel.The hose can be locked in 8 locking positions per revolution. A short pull on the hose cancels the lock.Suttner Stainless steel swivel ST-322.For use in dry environments.

Automatic high-pressure hose reel 430/11.Application: Air and waterInlet: 1/2" female threadOutlet: 1/2" AGMax. 20 bar / 70 °CDN 12 blackLength: 15 metresIncl. inlet hose 0.6 metresGalvanised steel hose fittingsHose reel:With automatic spring return and strain relief.Brass swivel joint.

Automatic high-pressure hose reel 532 Inlet: 1/2 "IG stainless steel Outlet: 1/2 "AG stainless steel Max. 45 bar / 70 °C PUReClean365+® food hose DN 12, smooth surface Fittings stainless steel Hose reel: Frame made of stainless steel V2A / AISI 304. Reel made of particularly impact-resistant ABS plastic, which is used for motorbike helmets and in the automotive industry, among other things. With automatic spring return and strain relief. Suttner Stainless steel swivel ST-322.

Automatic high-pressure hose reel 532 Gun ST-3225 with switch-off delay (damper) and opening lock. Inlet: 1/2" female thread rotatable Outlet: coupling ST-3100 insulated Material: stainless steel Max. 24.5 bar / 70°C PUReClean365+® food hose in accordance with Regulation (EC) No. 1935/2004, (EU) No. 10/2011 and (EC) No. 2023/2006. DN 12, smooth surface Fittings stainless steel Hose reel: Frame made of stainless steel V2A / AISI 304. Reel made of particularly impact-resistant ABS plastic, which is used for motorbike helmets and in the automotive industry, among other things. With automatic spring return and strain relief. Suttner Stainless steel swivel ST-322.

Automatic high-pressure hose reel 532 Gun ST-3225 with switch-off delay (damper) without opening lock. Inlet: 1/2" female thread rotatable Outlet: coupling ST-3100 insulated Material: stainless steel Max. 60 bar / 70°C PUReClean365+® food hose in accordance with Regulation (EC) No. 1935/2004, (EU) No. 10/2011 and (EC) No. 2023/2006. DN 12, smooth surface Fittings stainless steel Hose reel: Frame made of stainless steel V2A / AISI 304. Reel made of particularly impact-resistant ABS plastic, which is used for motorbike helmets and in the automotive industry, among other things. With automatic spring return and strain relief. Suttner Stainless steel swivel ST-322.

Input: M22x1.5AGOutlet: M22x1.5IGMax. 210 bar / 90 °CHigh pressure hose:1SN DN 08 black, coiled top rubberFittings galvanised steel / brass.Hose reel:Frame made of stainless steel V2A / AISI 304.Reel made of particularly impact-resistant ABS plastic, colour black.Automatic spring return and strain relief.Suttner Swivel joint ST-322 made of stainless steel.

Type: 434-01Max. 90 °CMaterial: Stainless steel V2A / AISI 304.Dimension 1: 460 mmDimension 2: 420 mmDimension 3: 140 mmDimension 4: 186 mmThe hose reels are suitable for use in explosion-protected areas above ground and in mining in accordance with Directive 94/9/EC (Atex 95/100). They can be used in potentially explosive zones 1 + 2 (gas) and 21 + 22 (dust). Depending on the application, attention must be paid to the temperature class.II 2/ GD c (T4) 135 °C X
