Kärcher, Kränzle High pressure hoses

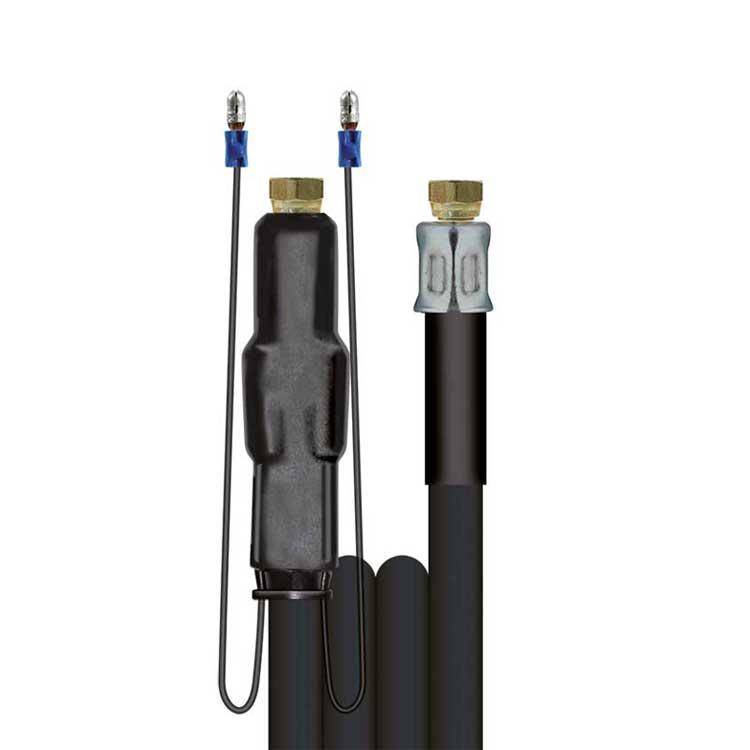

Heated foam hoses for 2 or 3 washing stations.Firmly wound surface with steel wire insert, therefore kink-resistantNominal diameter 08Length 10 or 12 metresConnection 1: 1/4" internal thread with sealing cone (DKR) and electric cableConnection 2: 1/4" internal thread with sealing cone (DKR)

Heated low-pressure hoses with PA inner hose.For rim cleanersSoft, smooth surface:" pleasantly easy handling." very gentle on vehicle surfaces." No black streaks on the vehicle.Length 6.8 metresConnection 1: 1/4" female thread with sealing cone (DKR) and electric cableConnection 2: 1/4" female thread with sealing cone (DKR)For "old" lance variant.

Heated low-pressure hoses with PA inner hose.For rim cleanersSoft, smooth surface:Pleasantly easy handling.Very gentle on vehicle surfaces.No black streaks on the vehicle.Length 6.8 metresConnection 1: 450 mm silicone hose and electric cableConnection 2: 50 mm silicone hoseFor "new" lance variant.

High pressure hose 1SN-06 black for KärcherDKO M22 Selectable length.Ideal for high-pressure pre-cleaning on washing lines. Inner diameter: 6mm Union nut: M22 Wire insert: single layer max. 210 bar Kink protection: 2x

wound cover.Connection 1: DKO 22x1.5 (washing appliance nipple) with blue kink protectionConnection 2: Plug nipple 11 mm with bearingNominal width: 8Type: 1SN (1 steel wire insert) coiled surfaceColour: blueMax. 210 bar / 150°C4-fold safety

GKS Black New

Heated high-pressure hoses (before 2005)Heated high-pressure hoses for 2 or 3 washing stations.Firmly coiled surface with steel wire insert, therefore kink-resistant.Nominal width 08Length 8.5, 12, 15 or 18 metresConnection 1: M22x1.5 female thread Including electric cableConnection 2: 3/8" external thread with sealing cone (AGR)

Connection 1: DKO 22x1.5 (washing appliance nipple) with kink protection yellow Connection 2: DKO 22x1.5 (washing appliance nipple) with bend protection yellow Stainless steel compression nipple, brass nut. Nominal size: 8 Type: 1SN (1 steel wire insert) Coiled surface Colour: green Max. 315 bar / 150°C

Plug. 11 mm swivelling

High-pressure hose 1SN-06 blue for DKO M22 Selectable length. Ideal for high-pressure pre-cleaning on car washes. Inner diameter: 6mm Union nut: M22 manual screw connection Wire insert: single layer max. 210 bar Kink protection: 2x

High-pressure hose 1SN-06 grey for DKO M22 Length 5m. Ideal for high-pressure pre-cleaning at washing lines. Inner diameter: 6mm Union nut: M22 manual screw connection Wire insert: single layer max. 250 bar Kink protection: 2x

High-pressure hose 1SN-06 black for Kärcher DKO M22 to plug-in nipple 11mm length selectable. Inner diameter: 6mm Union nut: M22 Plug nipple: 11 mm rotatable Wire insert: single layer max. 210 bar Kink protection: 2x Which hose?

GKS Black

Coiled cover. Nipple + socket made of stainless steel Connection 1: DKO M22x1.5 with bend protection grey Connection 2: DKO M22x1.5 with bend protection grey Nominal size: 8 Type: 1SN (1 steel wire insert) Coiled surface Colour: grey Max. 210 bar / 150°C 4-fold safety

High-pressure hose 1SN-08 yellow for Kärcher DKO M22 Selectable length. Ideal for high-pressure pre-cleaning on car washes. Inner diameter: 8mm Union nut: M22 Wire insert: single layer max. 210 bar Kink protection: 2x yellow

High-pressure hose 1SN-08 black for Kärcher DKO M22 Selectable length. Ideal for high-pressure pre-cleaning on car washes. Inner diameter: 8mm Union nut: M22 Wire insert: single layer max. 210 bar Kink protection: 2x

High-pressure hose for Kärcher High-pressure cleaner with M22 connection. Which hose? Inner diameter: 8mm Union nut: M22 hand screw connection Wire insert: single layer max. 250 bar ?kink protection: 2x We are talking here about a smooth high-pressure hose whose close relationship to the Flexy high-pressure hose with all the positive features with all the positive properties known from the Flexy. It is characterised by characterised by the following properties: " High flexibility thanks to its highly flexible design and structure. " Easy to clean thanks to the smooth surface (smooth cover). " Easy to pull due to excellent gliding properties. No " No snagging - can be pulled smoothly around any corner! " Low wear due to reduced abrasion. " Particularly suitable for use on hose reels. The very clean and dirt-repellent smooth cover, which is easy to clean, is clean, has a durable print that is vulcanised into the hose. vulcanised into the hose. It is also very resistant to ozone. Significantly improved flexibility has been achieved through the flexibility has been achieved through the use of a special rubber compound.

High-pressure hose 1SN-08 black for Kärcher DKO M22 Selectable length. Ideal for high-pressure pre-cleaning at car washes. Inner diameter: 8mm Union nut: M22 manual screw connection Wire insert: single layer max. 250 bar Kink protection: 2x

Connection 1: DKO 22x1.5 (washing appliance nipple) with kink protection blackConnection 2: DKO 22x1.5 swivelling (washing appliance nipple) with kink protection yellowNominal width: 8Type: 1SN (1 steel wire insert) smooth surfaceColour: blackMax. 250 bar / 150 °C

Connection 1: DKO 22x1.5 (washing appliance nipple) with yellow bend protectionConnection 2: DKO 22x1.5 (washing appliance nipple) with yellow bend protectionNominal width: 8Type: 1SN (1 steel wire insert) coiled surfaceColour: blackMax. 210 bar / 150 °C
