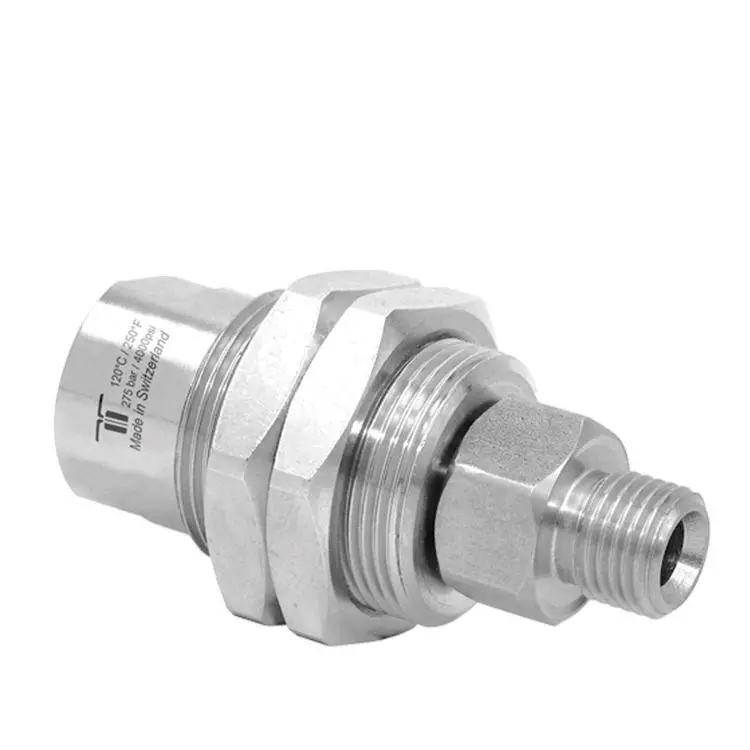

Mosmatic DGG swivel joint - triple bearing - 3/8" IG x 1/4" AG - 275 bar
€160.20*
(Gross incl. VAT: €190.64)Available, delivery time: 1-3 days
Mosmatic Straight swivel joint with Schott thread M28x1.5 mm.
Applications: High-pressure cleaning technology, parts washers, wheel washers, self-rotating applications
Technical data
Inlet: 3/8" female thread
Outlet: 1/4" male thread
Nominal diameter: 6 mm
Pressure 275 bar (27.5 MPa)
Temperature 30°C (at 1,000 rpm) 120°C (at 30 rpm)
Max. speed 1,000 rpm
Housing DGG: nickel-plated brass DGGI: stainless steel
Inner part: stainless steel
NBR O-ring seal
Bearing arrangement: 2x radial ball bearings, 1x axial ball bearing
Flow meter: pH 3–12, 10 μm filtered, 20 bar compressed air
(optional: EPDM or FKM)
2x radial ball bearings
1x axial ball bearing
