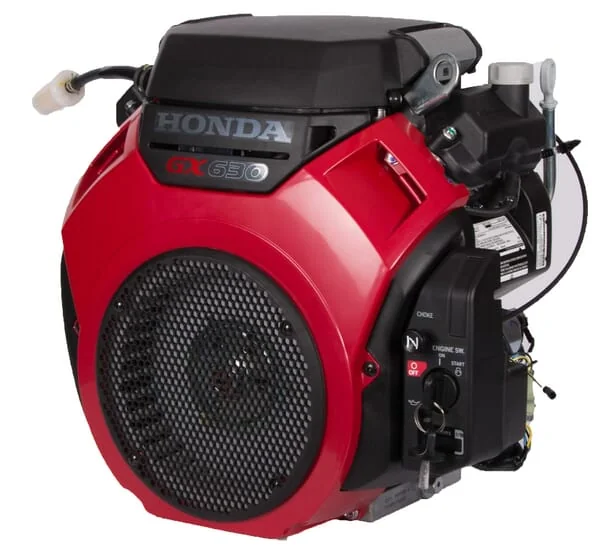

The GX630 engines can be used for a wide range of high-performance applications such as construction equipment, generators, pumps and other industrial machinery.

Engine characteristics:

  • OHV design increases combustion efficiency
  • Variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emissions
  • Easy starting thanks to an automatic decompression system and a soft-grip starter knob
  • High-quality materials and specially manufactured components ensure reliable long-term use
  • The engines comply with the world's strictest emissions regulations
  • Low fuel and oil consumption

    MOTORTYPE2-cylinder 4-stroke
    OHV petrol engine
    90° V-twin design
    horizontal crankshaft / tapered shaft journal 22 to 33mm x 84mm
    CYLINDER TYPECast iron bushing
    BORE X STROKE2 / 78 x 72 mm
    STROKE CAPACITY688 cm³
    COMPRESSION9.3 : 1
    NET POWER15.5 kW ( 20.8 HP ) / 3600 min-1
    MAX. CONTINUOUS POWER10.5 kW ( 14.1 HP ) / 3000 min-1
    12.0 kW ( 16.1 HP ) / 3600 min-1
    MAX. NET TORQUE48.3 Nm ( 4.93 kgfm ) / 2500 min-1
    IGNITION SYSTEMDigital CDI ignition with variable ignition timing
    CARBURETTORDouble carburettor, solenoid valve
    LUBRICATIONFull pressure
    STARTERElectric
    FUEL CONSUMPTION AT CONTINUOUS POWER6.0 L/h - 3600 min-1
    ENGINE OIL CAPACITY1.7 litres
    DIMENSIONS (L X W X H)405 x 410 x 438 mm
    DRY WEIGHT44.4 kg
