Wall and ceiling gyroscopes

for easywash365+ ceiling tops

The straight swivel arm with a spring is characterised by a stainless steel construction in box form with two ball bearings and double watertight seal without maintenance requirements for easy 360° rotation. FURTHER INFORMATION: Viton seals 360° rotation angle Length 1750 or 2000 mm Max. 210bar / 90°C Connections inlet 1/4 "IG - outlet 3/8" AG

The straight swivel arm with two springs is characterised by a tubular stainless steel construction with two ball bearings and double watertight seal without the need for maintenance. FURTHER INFORMATION: Viton seals 360° angle of rotation Length 1750 or 2000 mm Max. 210bar / 90°C Connections inlet 1/4 "IG - outlet 3/8" AG

Mosmatic LED high-pressure ceiling gyroMaterial: Polished stainless steelLength: 1750 mmInlet: 1/4 "IGOutlet: 1/4 "AGWeight: 10.2 kgMax. 275 bar / 90 °CVoltage. 24 VLight intensity: 120 lxProtection class: IP66Ceiling gyro with ball-bearing pivot point.Maintenance-free.Connection with swivel joint." Customised and effective" Visualisation of the wash programme" Additional lighting of the wash box" Stand out from the competitionThe world first for the self-service wash bay. The ceiling gyro with LED can be used to visualise the wash programme, for example. It is not only an eye-catcher for self-service systems, but also provides additional lighting for the self-service box. Due to the electronics, this product must be installed with particular care and by a specialist with the appropriate expertise.Axle with 2 bearings and permanently lubricated.Specially developed for 2 different media and applications.

Positioner with magnet. The positioner ensures that theMosmatic Z ceiling gyro is parked in a predefined position.

easywash365+ ceiling gyroscope Stainless steel. Ready for installation with 2 integrated quality swivel joints, professional high-pressure hose with strain relief spring and integrated kink protection. Axle with 2 bearings and permanently lubricated. Max. 275 bar / 90 °C. Connections: 1/4IG-AG Length: 1550mm

easywash365+ ceiling gyroscope with suspension Stainless steel. Ready for installation with 2 integrated quality swivel joints, professional high-pressure hose with strain relief spring and integrated kink protection. Axle with 2 bearings and permanently lubricated. Max. 275 bar / 90 °C. Connections: 1/4IG-AGLength: 1550mm

Mosmatic LED high-pressure ceiling gyro ZMaterial: Polished stainless steelLength: 1550 mmInlet: 1/4 "IGOutlet: 1/4 "AGWeight: 10.2 kgMax. 275 bar / 90 °CVoltage. 24 VLight intensity: 120 lxProtection class: IP66Ready for installation with 2 integrated quality swivel joints.Especially suitable for the use of 2 ceiling gyroscopes next to each other.High-pressure hose with insulation." Customised and effective" Visualisation of the wash programme" Additional lighting of the wash box" Stand out from the competitionThe world first for the self-service wash bay. The ceiling gyro with LED can be used to visualise the wash programme, for example. It is not only an eye-catcher for self-service systems, but also provides additional lighting for the self-service box. Due to the electronics, this product must be installed with particular care and by a specialist with the appropriate expertise.Axle with 2 bearings and permanently lubricated.Specially developed for 2 different media and applications.

The Z-shaped curved swivel arm with a spring is characterised by a tubular stainless steel construction with two ball bearings and double watertight seal with no maintenance required for easy 360° rotation. The internal hose is made of rubber. FURTHER INFORMATION: Viton seals 360° rotation angle Length 1550 mm Max. 210bar / 90°C Connections inlet 1/4 "IG - outlet 3/8" AG

The Z-shaped swivel arm with two springs with two springs is characterised by a tubular stainless steel construction with two ball bearings and double watertight seal for easy 360° rotation without the need for maintenance. The internal hose is made of rubber. FURTHER INFORMATION: Viton seals 360° rotation angle Length 1550 mm Max. 210bar / 90°C Connections inlet 1/4 "IG - outlet 3/8" AG

easywash365+ ceiling gyroscope Stainless steel. Ready for installation with 2 integrated quality swivel joints, professional high-pressure hose with strain relief spring and integrated kink protection. Axle with 2 bearings and permanently lubricated. Max. 275 bar / 90 °C. Connections 1/4IG-AG

Material: Stainless steelLength: 1450 / 1550 mmone arm for high pressure and the other for low pressureInlet: 1/4 "IGOutlet: 1/4 "AGMax. 275 bar / 90 °CReady for installation with 3 integrated quality swivel joints,professional high-pressure hose with strain relief spring and integrated kink protection.Axle with 2 bearings and permanently lubricated.Specially developed for 2 different media and applications.

The flexible double swivel arm from MTM with two springs is made of stainless steel and is available in 4 different versions with different lengths.Material: Stainless steelLength: 1600/1750 mm, 1750/2000mm, 2000/2500mm or 2500/3000mmInlet: 1/4 "IGOutlet: 3/8 "AGWeight: 13.5 kgMax. 210 bar / 90 °CReady for installation with 2 integrated quality swivel joints,professional high-pressure hose with strain relief spring and integrated kink protection.Axle with 2 bearings and permanently lubricated.Specially developed for 2 different media and applications.

easywash365+ ceiling gyroscope with springMaterial: Stainless steelLength: 1600 / 1750 mmInlet: 1/4 "IGOutlet: 1/4 "AGWeight: 13.5 kgMax. 275 bar / 90 °CReady for installation with 2 integrated quality swivel joints,professional high-pressure hose with strain relief spring and integrated kink protection.Axle with 2 bearings and permanently lubricated.Specially developed for 2 different media and applications.

easywash365+ Counter plate for wall-mounted swivel bracket Stainless steel, thickness 10 mm for secure mounting

High-pressure ceiling gyroscope incl. High-pressure hose For mounting on the wall or ceiling Ideal for self-service systems or pre-wash stations " Wall or ceiling mounting " Incl. high-pressure hose DN 8, black " Ceiling swivel 360° swivelling, 180° swivelling for wall mounting " Ball bearing mounted pivot point " Total length up to 2500 mm " Max. 275 bar / 120 °C " Connection: 3/8" AG " Material: stainless steel

easywash365+ Wall-mounted swivel arm with Ceiling-mounted gyro Total length 3600mm " Designed for the washing large vehicles " Ceiling gyro can be swivelled 360°, swivel arm can be swivelled 180 " Ball bearing mounted, maintenance-free pivot points " Optional counter plate available " Max. 275 bar / 120 °C " Connection: 3/8" AG " Material: stainless steel

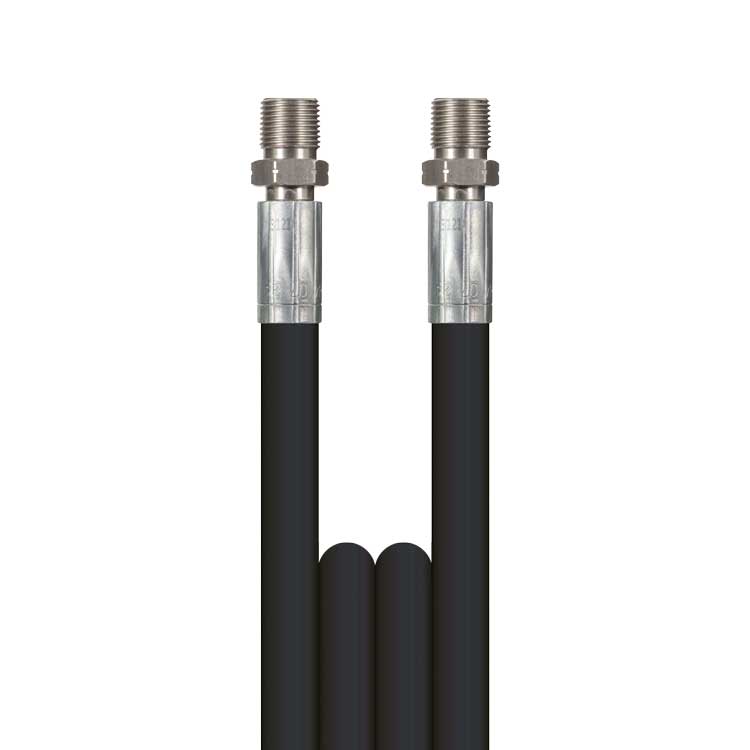

Coiled surface. Stainless steel fittings Suitable for easywash365+ 1550 mm ceiling-mounted roundabout Connection 1: AGR 3/8 "NPT Connection 2: AGR 3/8 "NPT Nominal diameter: 8 Type: 1SN (1 steel wire insert) coiled surface Colour: black Max. 250 bar / 150 °C 4-fold safety

High-pressure hose for easywash365+ wall-mounted swivelling boom with ceiling gyroscope Total length 2100mm 2x DKR 3/8"

High-pressure hose for easywash365+ wall-mounted swivelling boom with ceiling gyroscope Total length 3100mm 2x DKR 3/8"
